client_side.h File Reference

#include "acl/ChecklistFiller.h"
#include "base/RunnersRegistry.h"
#include "clientStreamForward.h"
#include "comm.h"
#include "error/Error.h"
#include "helper/forward.h"
#include "http/forward.h"
#include "HttpControlMsg.h"
#include "ipc/FdNotes.h"
#include "log/forward.h"
#include "proxyp/forward.h"
#include "sbuf/SBuf.h"
#include "servers/Server.h"
#include "auth/UserRequest.h"
#include "security/KeyLogger.h"
#include "security/forward.h"
#include "security/Handshake.h"
#include "ssl/support.h"
#include "MessageBucket.h"
#include <iosfwd>

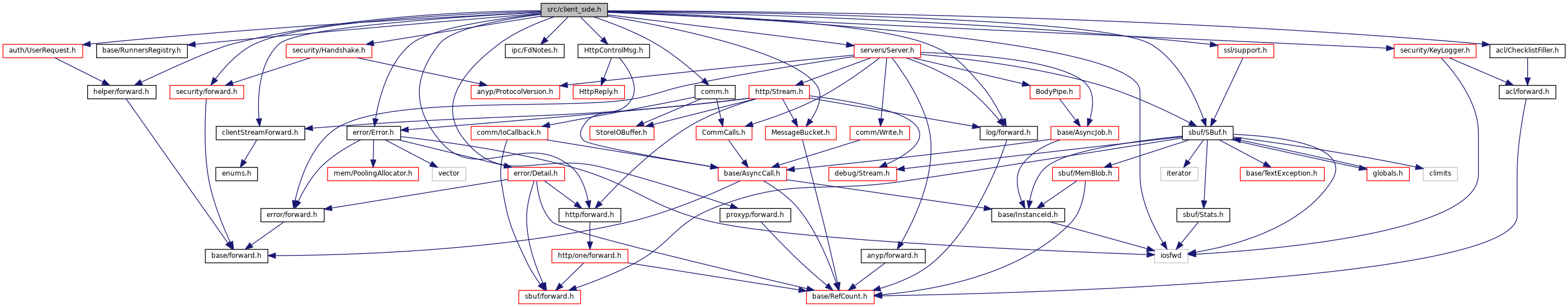

Include dependency graph for client_side.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ConnStateData
class	ConnStateData::PinnedIdleContext
	parameters for the async notePinnedConnectionBecameIdle() call More...
class	ConnStateData::ServerConnectionContext
	noteTakeServerConnectionControl() callback parameter More...

Namespaces
namespace	Ssl

Typedefs
typedef RefCount< MasterXaction >	MasterXactionPointer

Functions
const char *	findTrailingHTTPVersion (const char *uriAndHTTPVersion, const char *end=nullptr)
int	varyEvaluateMatch (StoreEntry *entry, HttpRequest *req)
void	clientStartListeningOn (AnyP::PortCfgPointer &port, const RefCount< CommCbFunPtrCallT< CommAcceptCbPtrFun > > &subCall, const Ipc::FdNoteId noteId)
	accept requests to a given port and inform subCall about them More...
void	clientOpenListenSockets (void)
void	clientConnectionsClose (void)
void	httpRequestFree (void *)
void	clientSetKeepaliveFlag (ClientHttpRequest *http)
	decide whether to expect multiple requests on the corresponding connection More...
void	clientPackRangeHdr (const HttpReplyPointer &, const HttpHdrRangeSpec *, String boundary, MemBuf *)
	append a "part" HTTP header (as in a multi-part/range reply) to the buffer More...
void	clientPackTermBound (String boundary, MemBuf *)
	put terminating boundary for multiparts to the buffer More...
void	clientProcessRequest (ConnStateData *, const Http1::RequestParserPointer &, Http::Stream *)
void	clientProcessRequestFinished (ConnStateData *, const HttpRequest::Pointer &)
void	clientPostHttpsAccept (ConnStateData *)
std::ostream &	operator<< (std::ostream &os, const ConnStateData::PinnedIdleContext &pic)
std::ostream &	operator<< (std::ostream &, const ConnStateData::ServerConnectionContext &)

Variables
SQUIDCEXTERN CSR	clientGetMoreData
SQUIDCEXTERN CSS	clientReplyStatus
SQUIDCEXTERN CSD	clientReplyDetach
CSCB	clientSocketRecipient
CSD	clientSocketDetach

Typedef Documentation

MasterXactionPointer

typedef RefCount<MasterXaction> MasterXactionPointer

Definition at line 46 of file client_side.h.

Function Documentation

clientConnectionsClose()

void clientConnectionsClose

(

void

)

Definition at line 3398 of file client_side.cc.

References CodeContext::Current(), debugs, HttpPortList, HttpSockets, Important, NHttpSockets, CodeContext::Reset(), and Ftp::StopListening().

Referenced by releaseServerSockets(), and serverConnectionsClose().

clientOpenListenSockets()

void clientOpenListenSockets

(

void

)

Definition at line 3388 of file client_side.cc.

References clientHttpConnectionsOpen(), fatal(), NHttpSockets, and Ftp::StartListening().

Referenced by serverConnectionsOpen().

clientPackRangeHdr()

void clientPackRangeHdr	(	const HttpReplyPointer &	rep,
		const HttpHdrRangeSpec *	spec,
		String	boundary,
		MemBuf *	mb
	)

Definition at line 733 of file client_side.cc.

References MemBuf::append(), Packable::appendf(), assert, HttpHeader::clean(), Http::Message::content_length, Http::CONTENT_TYPE, debugs, HttpHeader::getStr(), HttpHeader::has(), Http::Message::header, hoReply, httpHeaderAddContRange(), HttpHeader::packInto(), HttpHeader::putStr(), SQUIDSTRINGPH, and SQUIDSTRINGPRINT.

Referenced by ClientHttpRequest::mRangeCLen(), and Http::Stream::packRange().

clientPackTermBound()

void clientPackTermBound	(	String	boundary,
		MemBuf *	mb
	)

Definition at line 726 of file client_side.cc.

References Packable::appendf(), debugs, MemBuf::size, SQUIDSTRINGPH, and SQUIDSTRINGPRINT.

Referenced by ClientHttpRequest::mRangeCLen(), and Http::Stream::packRange().

clientPostHttpsAccept()

void clientPostHttpsAccept

(

ConnStateData *

)

clientProcessRequest()

void clientProcessRequest	(	ConnStateData *	conn,
		const Http1::RequestParserPointer &	hp,
		Http::Stream *	context
	)

Definition at line 1588 of file client_side.cc.

References ClientHttpRequest::Flags::accel, RequestFlags::accelerated, ClientHttpRequest::al, assert, HttpRequest::auth_user_request, Http::Message::body_pipe, ClientHttpRequest::calloutContext, HttpRequest::checkEntityFraming(), ClientHttpRequest::checkForInternalAccess(), HttpHeader::chunked(), clientIsRequestBodyTooLargeForPolicy(), clientProcessRequestFinished(), clientSetKeepaliveFlag(), conn, Http::Message::content_length, debugs, ClientHttpRequest::doCallouts(), ERR_INVALID_REQ, ERR_TOO_BIG, ERR_UNSUP_REQ, ClientHttpRequest::flags, HttpRequest::flags, Http::Stream::getClientReplyContext(), HttpHeader::getInt64(), RefCount< C >::getRaw(), Http::Message::header, Http::Stream::http, Http::Message::http_ver, AnyP::ProtocolVersion::major, HttpRequest::manager(), Http::MAX_FORWARDS, Http::Stream::mayUseConnection(), HttpRequest::method, Http::METHOD_CONNECT, Http::METHOD_OPTIONS, AnyP::ProtocolVersion::minor, RequestFlags::noDirect, ClientHttpRequest::Out::offset, ClientHttpRequest::out, BodyPipe::productionEnded(), AnyP::PROTO_HTTPS, AnyP::ProtocolVersion::protocol, Http::Stream::pullData(), ClientHttpRequest::request, Http::scContentTooLarge, Http::scNone, Http::scNotImplemented, clientReplyContext::setReplyToError(), Http::Message::sources, Http::Message::srcFtp, Http::Message::srcHttp, Http::Message::srcHttps, RequestFlags::sslBumped, and urlCheckRequest().

Referenced by Ftp::Server::doProcessRequest(), Http::One::Server::proceedAfterBodyContinuation(), and Http::One::Server::processParsedRequest().

clientProcessRequestFinished()

void clientProcessRequestFinished	(	ConnStateData *	conn,
		const HttpRequest::Pointer &	request
	)

Definition at line 1572 of file client_side.cc.

clientSetKeepaliveFlag()

void clientSetKeepaliveFlag

(

ClientHttpRequest *

http

)

clientSetKeepaliveFlag() sets request->flags.proxyKeepalive. This is the client-side persistent connection flag. We need to set this relatively early in the request processing to handle hacks for broken servers and clients.

Definition at line 698 of file client_side.cc.

References debugs, HttpRequest::flags, Http::Message::http_ver, HttpRequest::method, Http::Message::persistent(), RequestFlags::proxyKeepalive, and ClientHttpRequest::request.

Referenced by clientProcessRequest(), and Ftp::Server::doProcessRequest().

clientStartListeningOn()

void clientStartListeningOn	(	AnyP::PortCfgPointer &	port,
		const RefCount< CommCbFunPtrCallT< CommAcceptCbPtrFun > > &	subCall,
		const Ipc::FdNoteId	noteId
	)

Definition at line 3322 of file client_side.cc.

References assert, asyncCall(), clientListenerConnectionOpened(), COMM_INTERCEPTION, COMM_NONBLOCKING, COMM_REUSEPORT, COMM_TRANSPARENT, HttpSockets, MAXTCPLISTENPORTS, NHttpSockets, port, and Ipc::StartListening().

Referenced by clientHttpConnectionsOpen(), and Ftp::StartListening().

findTrailingHTTPVersion()

const char * findTrailingHTTPVersion	(	const char *	uriAndHTTPVersion,
		const char *	end
	)

'end' defaults to NULL for backwards compatibility remove default value if we ever get rid of NULL-terminated request buffers.

Definition at line 1076 of file client_side.cc.

References assert, and xisspace.

Referenced by HttpRequest::parseFirstLine().

httpRequestFree()

void httpRequestFree

(

void *

data

)

Definition at line 499 of file client_side.cc.

References assert.

Referenced by Http::Stream::~Stream(), and esiBufferRecipient().

operator<<() [1/2]

std::ostream & operator<<	(	std::ostream &	os,
		const ConnStateData::ServerConnectionContext &	scc
	)

Definition at line 223 of file client_side.cc.

operator<<() [2/2]

std::ostream & operator<<	(	std::ostream &	os,
		const ConnStateData::PinnedIdleContext &	pic
	)

Definition at line 4049 of file client_side.cc.

References ConnStateData::PinnedIdleContext::connection, and ConnStateData::PinnedIdleContext::request.

varyEvaluateMatch()

int varyEvaluateMatch	(	StoreEntry *	entry,
		HttpRequest *	req
	)

Definition at line 3422 of file client_side.cc.

References SBuf::clear(), SBuf::cmp(), DBG_IMPORTANT, debugs, MemObject::freshestReply(), HttpHeader::has(), Http::HDR_X_ACCELERATOR_VARY, Http::Message::header, httpMakeVaryMark(), SBuf::isEmpty(), StoreEntry::mem(), StoreEntry::mem_obj, MemObject::urlXXX(), Http::VARY, VARY_CANCEL, HttpRequest::vary_headers, MemObject::vary_headers, VARY_MATCH, VARY_NONE, and VARY_OTHER.

Referenced by clientReplyContext::cacheHit().

Variable Documentation

clientGetMoreData

SQUIDCEXTERN CSR clientGetMoreData

Definition at line 529 of file client_side.h.

Referenced by ConnStateData::abortRequestParsing(), ConnStateData::buildFakeRequest(), Downloader::buildRequest(), ConnStateData::parseHttpRequest(), and Ftp::Server::parseOneRequest().

clientReplyDetach

SQUIDCEXTERN CSD clientReplyDetach

Definition at line 531 of file client_side.h.

Referenced by ConnStateData::abortRequestParsing(), ConnStateData::buildFakeRequest(), Downloader::buildRequest(), ConnStateData::parseHttpRequest(), and Ftp::Server::parseOneRequest().

clientReplyStatus

SQUIDCEXTERN CSS clientReplyStatus

Definition at line 530 of file client_side.h.

Referenced by ConnStateData::abortRequestParsing(), ConnStateData::buildFakeRequest(), Downloader::buildRequest(), ConnStateData::parseHttpRequest(), and Ftp::Server::parseOneRequest().

clientSocketDetach

CSD clientSocketDetach

Definition at line 533 of file client_side.h.

Referenced by Ftp::Server::parseOneRequest().

clientSocketRecipient

CSCB clientSocketRecipient

Definition at line 532 of file client_side.h.

Referenced by Ftp::Server::parseOneRequest().
