Inheritance diagram for htcpSpecifier:

[legend]

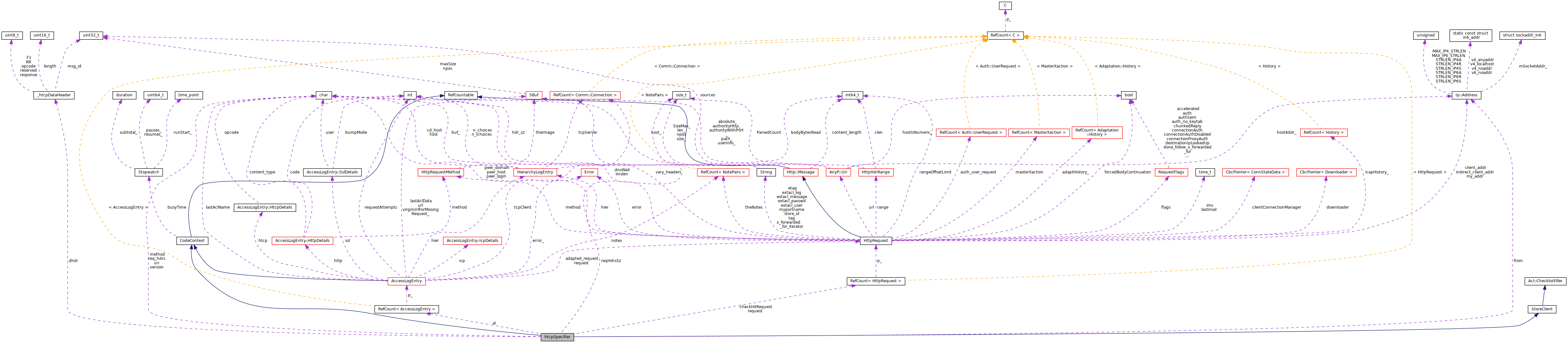

Collaboration diagram for htcpSpecifier:

[legend]

Public Types
typedef RefCount< htcpSpecifier >	Pointer

Public Member Functions
void	checkHit ()

void	checkedHit (StoreEntry *)

void	setFrom (Ip::Address &anIp)

void	setDataHeader (htcpDataHeader *aDataHeader)

ScopedId	codeContextGist () const override

std::ostream &	detailCodeContext (std::ostream &os) const override
	appends human-friendly context description line(s) to a cache.log record More...

LogTags *	loggingTags () const override

void	fillChecklist (ACLFilledChecklist &) const override
	configure the given checklist (to reflect the current transaction state) More...

Static Public Member Functions
static const Pointer &	Current ()

static void	Reset ()
	forgets the current context, setting it to nil/unknown More...

static void	Reset (const Pointer)
	changes the current context; nil argument sets it to nil/unknown More...

Public Attributes
const char *	method = nullptr

const char *	uri = nullptr

char *	version = nullptr

char *	req_hdrs = nullptr

size_t	reqHdrsSz = 0
	size of the req_hdrs content More...

HttpRequest::Pointer	request

AccessLogEntryPointer	al
	optimization: nil until needed More...

Stopwatch	busyTime
	time spent in this context (see also: busy_time) More...

Protected Member Functions
bool	startCollapsingOn (const StoreEntry &, const bool doingRevalidation) const

bool	mayInitiateCollapsing () const
	whether Squid configuration allows us to become a CF initiator More...

bool	onCollapsingPath () const
	whether Squid configuration allows collapsing for this transaction More...

Private Member Functions
	MEMPROXY_CLASS (htcpSpecifier)

Static Private Member Functions
static void	ForgetCurrent ()

static void	Entering (const Pointer &codeCtx)

static void	Leaving ()

Private Attributes
HttpRequest::Pointer	checkHitRequest

Ip::Address	from

htcpDataHeader *	dhdr = nullptr

Detailed Description

Definition at line 124 of file htcp.cc.

Member Typedef Documentation

◆ Pointer

typedef RefCount<htcpSpecifier> htcpSpecifier::Pointer

Definition at line 129 of file htcp.cc.

Member Function Documentation

◆ checkedHit()

void htcpSpecifier::checkedHit ( StoreEntry * e )

Definition at line 1194 of file htcp.cc.

References al, dhdr, from, htcpLogHtcp(), htcpTstReply(), LOG_UDP_HIT, LOG_UDP_MISS, _htcpDataHeader::opcode, and uri.

Referenced by checkHit().

◆ checkHit()

void htcpSpecifier::checkHit ( )

Definition at line 960 of file htcp.cc.

References checkedHit(), checkHitRequest, debugs, RefCount< C >::getRaw(), HttpRequest::parseHeader(), refreshCheckHTCP(), req_hdrs, reqHdrsSz, request, StoreClient::startCollapsingOn(), and storeGetPublicByRequest().

◆ codeContextGist()

ScopedId htcpSpecifier::codeContextGist ( ) const

overridevirtual

Returns: a small, permanent ID of the current context gists persist forever and are suitable for passing to other SMP workers

Implements CodeContext.

Definition at line 928 of file htcp.cc.

References al, AccessLogEntry::codeContextGist(), HttpRequest::masterXaction, and request.

◆ Current()

const CodeContext::Pointer & CodeContext::Current ( )

staticinherited

Returns: the known global context or, to indicate unknown context, nil

Definition at line 33 of file CodeContext.cc.

References Instance().

Referenced by CallSubscription< Call_ >::callback(), CallBack(), CallContextCreator(), clientConnectionsClose(), clientHttpConnectionsOpen(), commStartHalfClosedMonitor(), CurrentCodeContextDetail(), HappyOrderEnforcer::enqueue(), CommQuotaQueue::enqueue(), StoreEntry::invokeHandlers(), Security::KeyLog::record(), CodeContext::Reset(), ScheduleCall(), Ftp::StartListening(), Ftp::StopListening(), tunnelDelayedClientRead(), and tunnelDelayedServerRead().

◆ detailCodeContext()

std::ostream & htcpSpecifier::detailCodeContext ( std::ostream & os ) const

overridevirtual

Implements CodeContext.

Definition at line 945 of file htcp.cc.

References al, AccessLogEntry::detailCodeContext(), Debug::Extra(), HttpRequest::masterXaction, and request.

◆ Entering()

void CodeContext::Entering ( const Pointer & codeCtx )

staticprivateinherited

Switches the current context to the given known context. Improves debugging output by replacing omni-directional "Reset" with directional "Entering".

Definition at line 55 of file CodeContext.cc.

References CodeContext::busyTime, CodeContext::codeContextGist(), debugs, CodeContext::ForgetCurrent(), Instance(), and Stopwatch::resume().

Referenced by CodeContext::Reset().

◆ fillChecklist()

void htcpSpecifier::fillChecklist ( ACLFilledChecklist & ) const

overridevirtual

Implements Acl::ChecklistFiller.

Definition at line 1010 of file htcp.cc.

References ACLFilledChecklist::al, al, dhdr, from, RefCount< C >::getRaw(), htcpSyncAle(), _htcpDataHeader::opcode, request, ACLFilledChecklist::setRequest(), and uri.

◆ ForgetCurrent()

void CodeContext::ForgetCurrent ( )

staticprivateinherited

Forgets the current known context, possibly triggering its destruction. Preserves the gist of the being-forgotten context during its destruction. Knows nothing about the next context – the caller must set it.

Definition at line 42 of file CodeContext.cc.

References assert, and Instance().

Referenced by CodeContext::Entering(), and CodeContext::Leaving().

◆ Leaving()

void CodeContext::Leaving ( )

staticprivateinherited

Forgets the current known context. Improves debugging output by replacing omni-directional "Reset" with directional "Leaving".

Definition at line 68 of file CodeContext.cc.

References debugs, CodeContext::ForgetCurrent(), and Instance().

Referenced by CodeContext::Reset().

◆ loggingTags()

LogTags * htcpSpecifier::loggingTags ( ) const

overridevirtual

Returns: LogTags (if the class logs transactions) or nil (otherwise)

Implements StoreClient.

Definition at line 1001 of file htcp.cc.

References al, AccessLogEntry::cache, and AccessLogEntry::CacheDetails::code.

◆ mayInitiateCollapsing()

bool StoreClient::mayInitiateCollapsing ( ) const

inlineprotectedinherited

Definition at line 58 of file StoreClient.h.

References StoreClient::onCollapsingPath().

Referenced by clientReplyContext::createStoreEntry(), and clientReplyContext::processExpired().

◆ MEMPROXY_CLASS()

htcpSpecifier::MEMPROXY_CLASS ( htcpSpecifier )

private

◆ onCollapsingPath()

bool StoreClient::onCollapsingPath ( ) const

protectedinherited

Definition at line 52 of file store_client.cc.

References SquidConfig::accessList, Acl::Answer::allowed(), SquidConfig::collapsed_forwarding, SquidConfig::collapsedForwardingAccess, Config, ACLChecklist::fastCheck(), Acl::ChecklistFiller::fillChecklist(), and SquidConfig::onoff.

Referenced by StoreClient::mayInitiateCollapsing(), and StoreClient::startCollapsingOn().

◆ Reset() [1/2]

void CodeContext::Reset ( )

staticinherited

◆ Reset() [2/2]

void CodeContext::Reset ( const Pointer codeCtx )

staticinherited

Definition at line 84 of file CodeContext.cc.

References CodeContext::Current(), CodeContext::Entering(), and CodeContext::Leaving().

◆ setDataHeader()

void htcpSpecifier::setDataHeader ( htcpDataHeader * aDataHeader )

inline

Definition at line 135 of file htcp.cc.

References dhdr.

◆ setFrom()

void htcpSpecifier::setFrom ( Ip::Address & anIp )

inline

Definition at line 134 of file htcp.cc.

References from.

◆ startCollapsingOn()

bool StoreClient::startCollapsingOn	(	const StoreEntry &	e,
		const bool	doingRevalidation
	)		const

protectedinherited

Returns: whether the caller must collapse on the given entry Before returning true, updates common collapsing-related stats. See also: StoreEntry::hittingRequiresCollapsing().

Definition at line 66 of file store_client.cc.

References debugs, StoreEntry::hittingRequiresCollapsing(), StoreClient::loggingTags(), and StoreClient::onCollapsingPath().

Referenced by checkHit(), ICPState::confirmAndPrepHit(), clientReplyContext::identifyFoundObject(), clientReplyContext::processExpired(), and UrnState::start().

Member Data Documentation

◆ al

AccessLogEntryPointer htcpSpecifier::al

mutable

Definition at line 156 of file htcp.cc.

Referenced by checkedHit(), codeContextGist(), detailCodeContext(), fillChecklist(), and loggingTags().

◆ busyTime

Stopwatch CodeContext::busyTime

inherited

Definition at line 76 of file CodeContext.h.

Referenced by Format::Format::assemble(), and CodeContext::Entering().

◆ checkHitRequest

HttpRequest::Pointer htcpSpecifier::checkHitRequest

private

Definition at line 159 of file htcp.cc.

Referenced by checkHit().

◆ dhdr

htcpDataHeader* htcpSpecifier::dhdr = nullptr

private

Definition at line 162 of file htcp.cc.

Referenced by checkedHit(), fillChecklist(), and setDataHeader().

◆ from

Ip::Address htcpSpecifier::from

private

Definition at line 161 of file htcp.cc.

Referenced by checkedHit(), fillChecklist(), and setFrom().

◆ method

const char* htcpSpecifier::method = nullptr

Definition at line 148 of file htcp.cc.

Referenced by htcpBuildSpecifier(), htcpClear(), htcpQuery(), and htcpTstReply().

◆ req_hdrs

char* htcpSpecifier::req_hdrs = nullptr

Definition at line 151 of file htcp.cc.

Referenced by checkHit(), htcpBuildSpecifier(), htcpClear(), htcpQuery(), and htcpTstReply().

◆ reqHdrsSz

size_t htcpSpecifier::reqHdrsSz = 0

Definition at line 152 of file htcp.cc.

Referenced by checkHit(), htcpBuildSpecifier(), and htcpTstReply().

◆ request

HttpRequest::Pointer htcpSpecifier::request

Definition at line 153 of file htcp.cc.

Referenced by checkHit(), codeContextGist(), detailCodeContext(), fillChecklist(), htcpClear(), and htcpTstReply().

◆ uri

const char* htcpSpecifier::uri = nullptr

Definition at line 149 of file htcp.cc.

Referenced by checkedHit(), fillChecklist(), htcpBuildSpecifier(), htcpClear(), htcpQuery(), and htcpTstReply().

◆ version

char* htcpSpecifier::version = nullptr

Definition at line 150 of file htcp.cc.

Referenced by htcpBuildSpecifier(), htcpClear(), htcpQuery(), and htcpTstReply().

The documentation for this class was generated from the following file:

src/htcp.cc
